Heat pump / air conditionerSEZ-M-DA
The price depends on the configuration and installation conditions – an EKO2 specialist prepares a quotation covering equipment, works and commissioning.
Heat pump / air conditioner SEZ-M-DA
SEZ-M series air-to-air heat pumps are almost invisible, as the indoor units are installed in ducts above the ceiling.
What we check before quoting
Check duct lengths and resistance, noise at the grilles and whether the access hatch will be conveniently placed.
Models
Select models to compare (up to 4).
Technical data
| Data | |
|---|---|
| Dimensions (mm) H×L×D | 200x990x700 |
| Weight (kg) | 21 |
| Airflow (m³/min) | 7-9-11 |
| Noise level (dB(A)) cooling/heating | 23-28-33 |
Vidiniai įrenginiai gali būti derinami su visais Multi Split įrenginiais (prie vieno išorinio įrenginio jungti kelis vidinius įrenginius).
| Heating | |
|---|---|
| SCOP (seasonal coefficient of performance) | 4.3 |
| Heating capacity (kW) (nom. (min.–max.)) | 4.2 (1.1-5.0) |
| Seasonal energy efficiency class | A+ |
| P design | 2.6 |
| Cooling | |
| SEER (seasonal energy efficiency ratio) | 6.7 |
| Cooling capacity (kW) (nom. (min.–max.)) | 3.5 (0.7-3.9) |
| Seasonal energy efficiency class | A+ |
| P design | 3.5 |

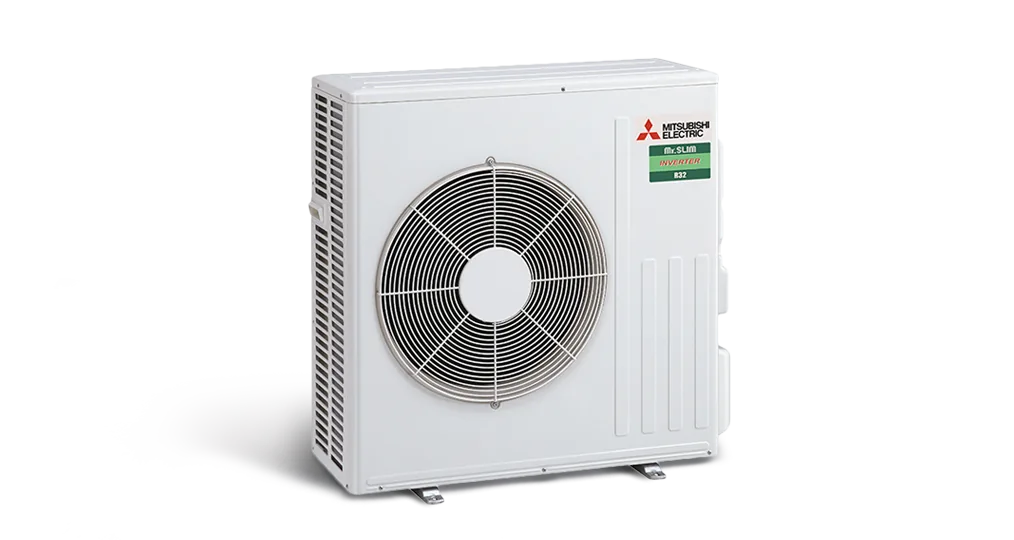

| Data | |
| Dimensions (mm) H×L×W | 550x800x285 |
| Weight (kg) | 35 |
| Noise level (dB(A)) cooling/heating | 48/49 |
| Max. operating current (A) | 8.5 |
| Recommended fuse (A) | 10 |
| Pipe diameters (gas/liquid) | (3/8″/1/4″) |
| Max. pipe length (m) | 20 |
| Max. height difference (m) | 12 |
| Power supply (V/Ph/Hz) | 230/1/50 |
| Refrigerant / charge (kg) | R32/0.9 |
| Guaranteed operating temperature range, °C | |
| Heating | -20*…+24 |
| Cooling | -10…+46 |
*instaliavus pakaitinimo kabelį MAC-AUTO3-1,5 ! Suteikiama 6 metų garantija, jei įrangos montavimą atliko sertifikuoti montuotojai.
Data comes from the EKO2ŠILUMA product database based on manufacturer documentation. Before ordering, we check the current manufacturer specification.
See how it works
SEZ-M-DA – 3D diagram
Interactive model: rotate, zoom, click on components.
Compatible with
Indoor and outdoor unit combinations are confirmed by an EKO2 engineer according to the manufacturer’s compatibility tables.
Documents
Installation and commissioning
Where already installed
Descriptions of completed projects with this equipment are published with the client’s consent. Projects
FAQ
Why choose an air-to-air heat pump?
An air-to-air heat pump combines three functions in one system: heating in winter, cooling in summer and air filtration. It can be fitted in an occupied home or a new build, and both the outdoor and indoor units take up little space.
It works well alongside existing heating – electric heaters, a fireplace, a stove or a gas boiler – and takes over much of the heating load in spring and autumn. Some series, such as MSZ-LN, have a more advanced filter system; see the product page for the exact features. We will match the right model to your rooms through the system finder.
Does a heat pump work below −25 °C, and does it harm the unit?
A heat pump keeps working at very low temperatures, but its heat output and efficiency fall. The exact operating limits of each model, per manufacturer data, are on the product page – e.g. MSZ-LN-VGHZ with Hyper Heating or the ZUBADAN PUHZ-SHW series. Operating limit and guaranteed capacity are not the same thing – we explain this in Heat pumps for the Lithuanian climate.
Do not switch the heat pump off during hard frosts: starting a cold system at −25 °C or below is not ideal, while continuous operation is easier on the compressor.
